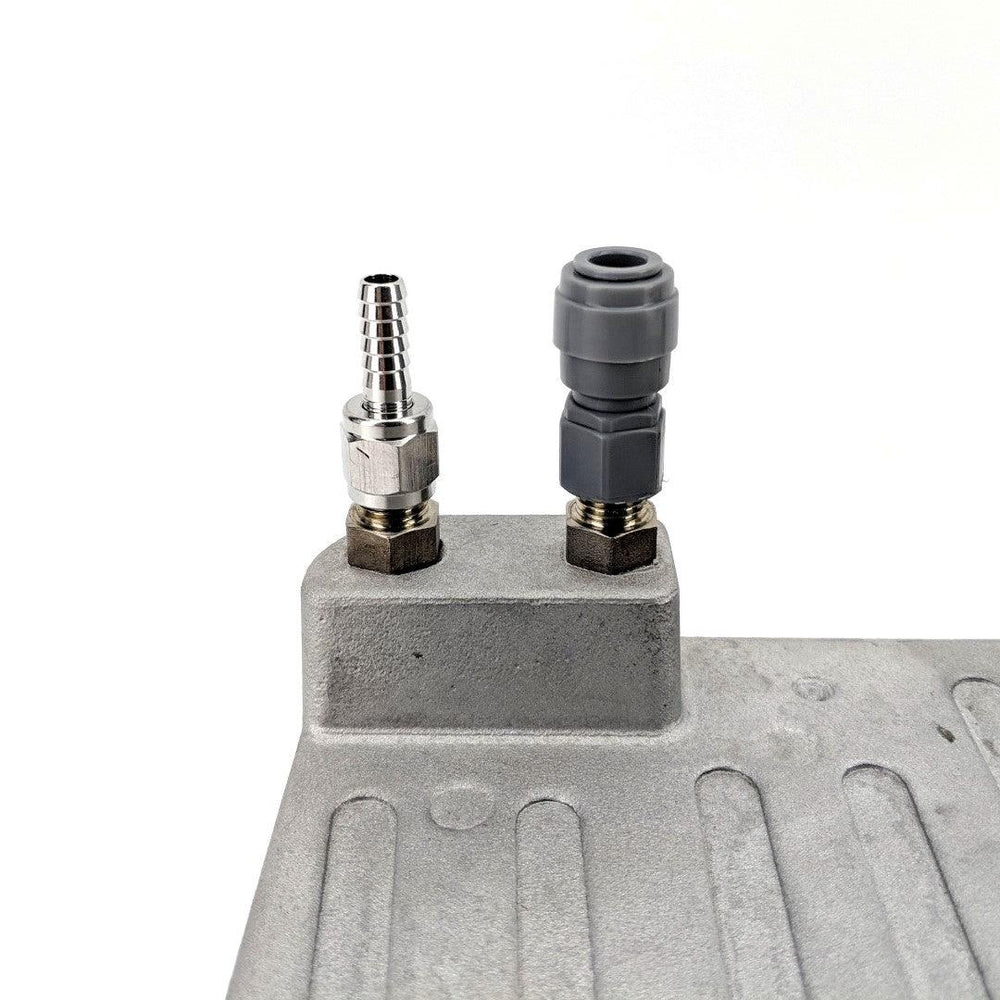

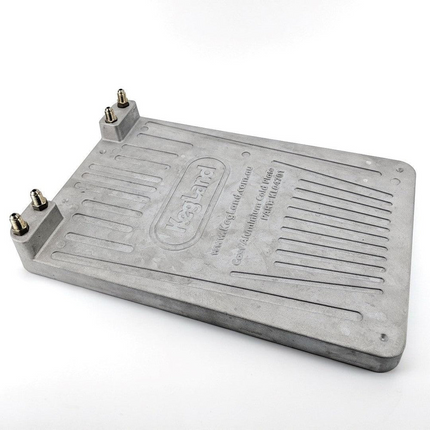

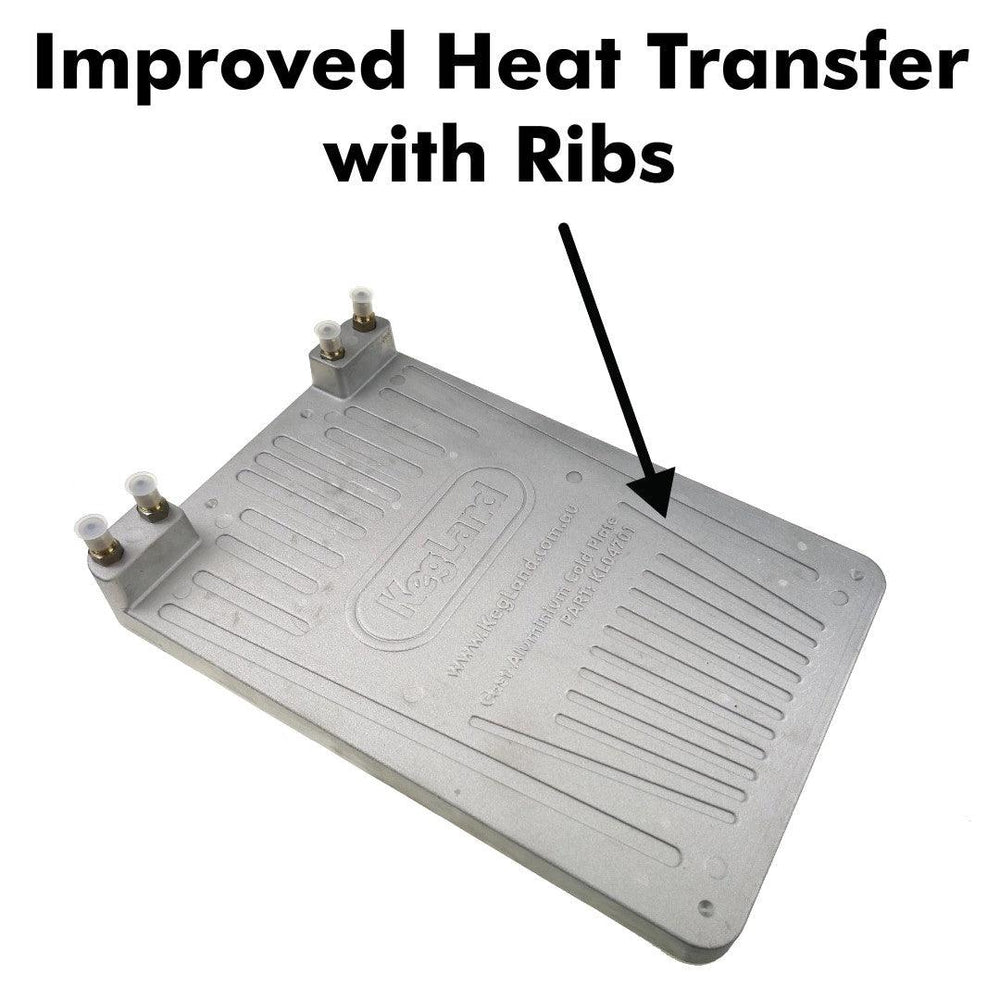

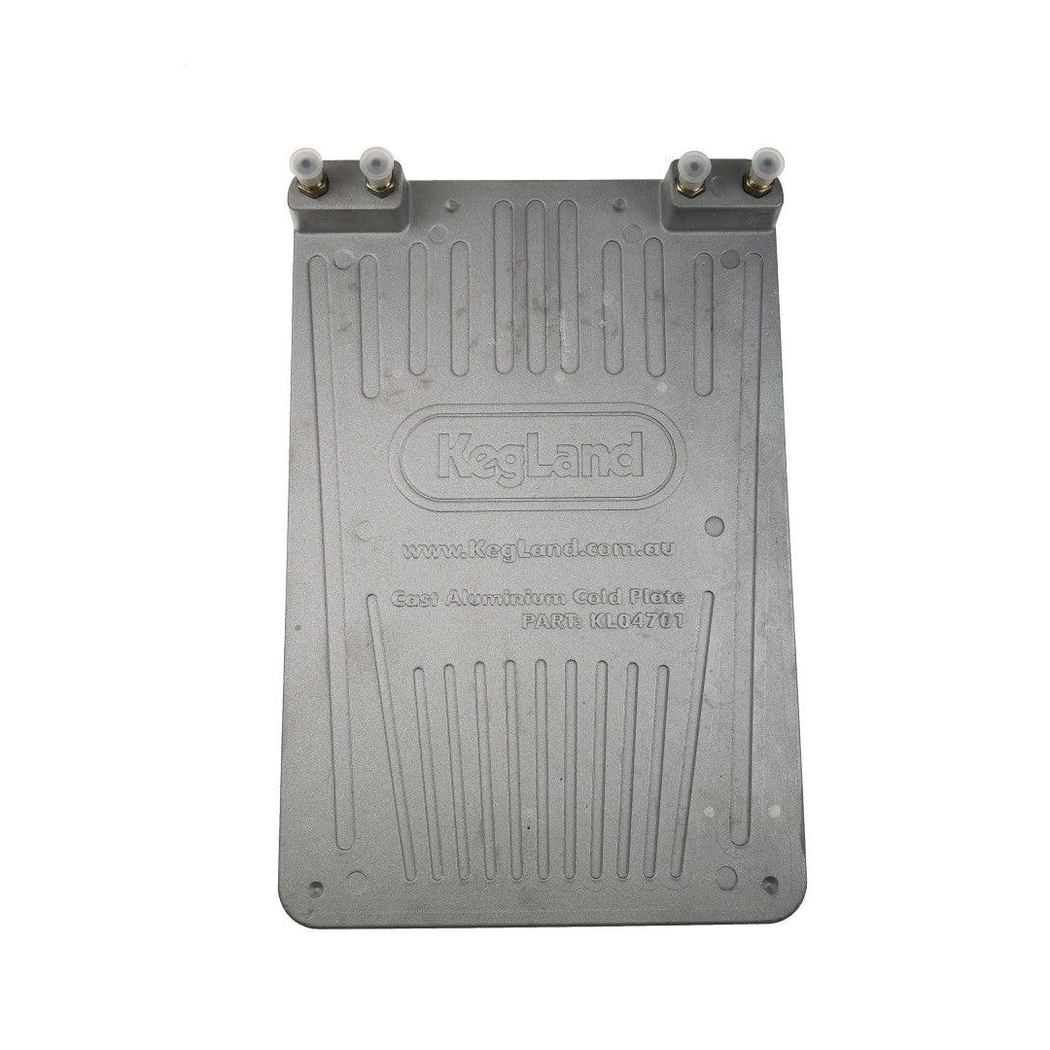

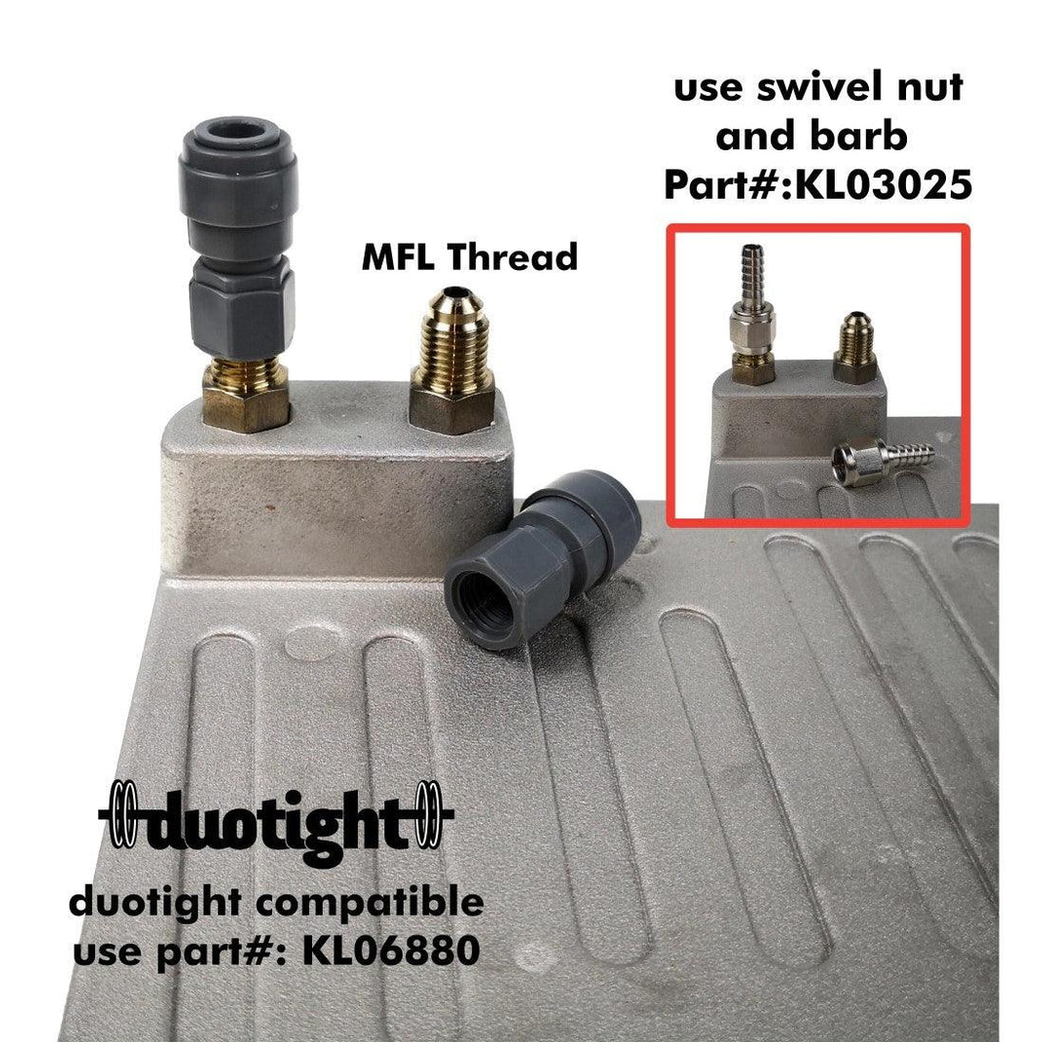

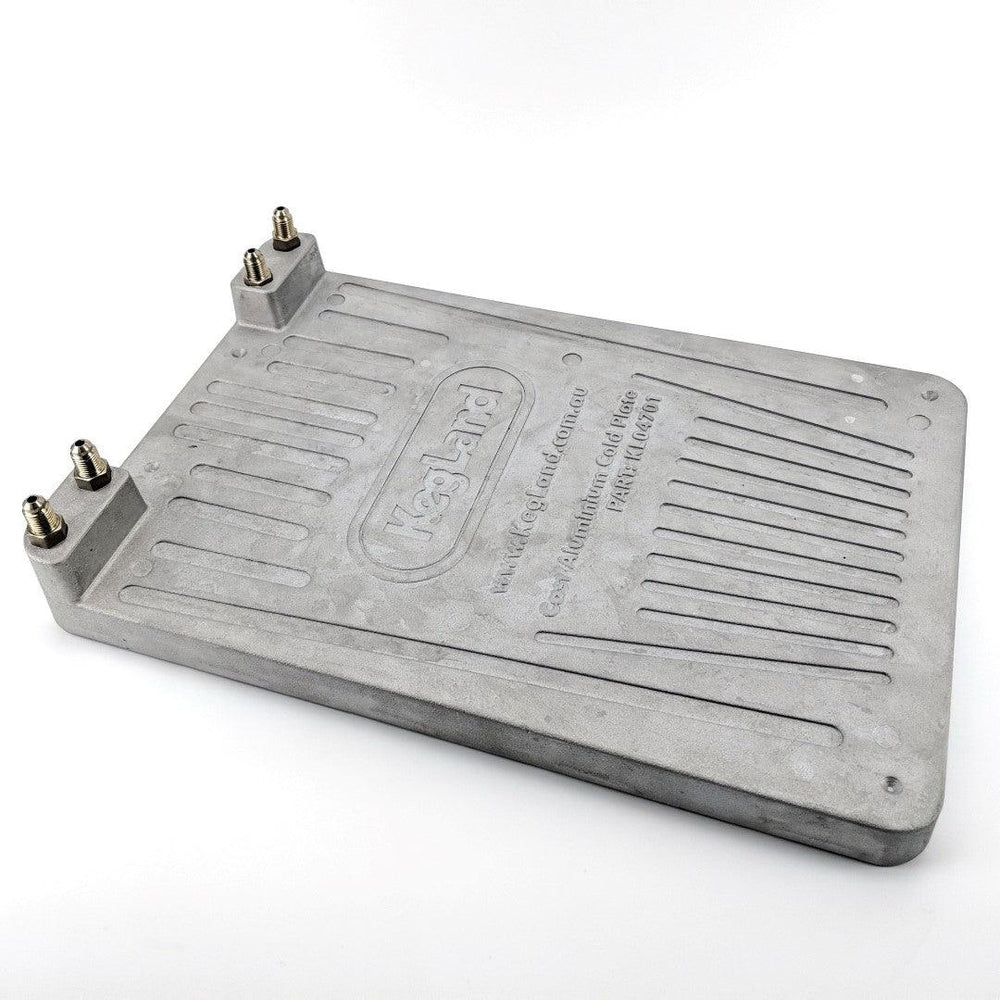

The KegLand Aluminum Cast Cold Plate features an impressive thermal mass with excellent heat absorption characteristics. High conductivity aluminum alloy aids the heat transfer as your beverage travels through the internal stainless steel lines. Inlets and outlets come with standard 1/4" male flare thread so you can easily attach swivel nuts and barbs or Duotight adapters.
Performance Characteristics:
With 68°F ambient beer temp, flow rate through the cold plate of 10oz/10 seconds, and 70% coverage of ice in contact with the cold plate, you will be able to reduce the temperature of the liquid as it exits the cold plate to below 39°F with a single pass. If your beer is warmer than 82°F, we would recommend either slowing your flow rate through the cold plate or alternatively loop the two beverage lines together so the liquid passes through the cold plate twice.
Specs:
-
Aluminum cast
-
18 ft. internal lines made from 304 stainless steel
-
1/4" male flare connections
-

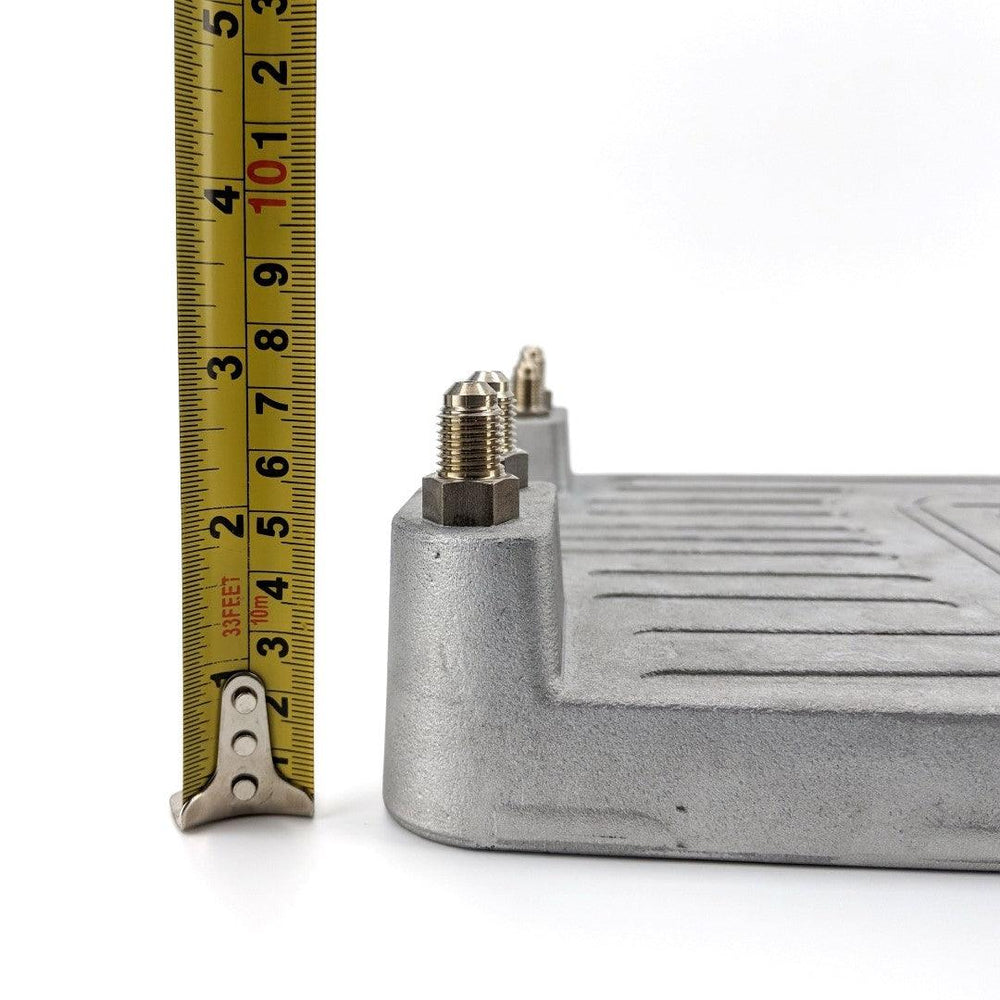

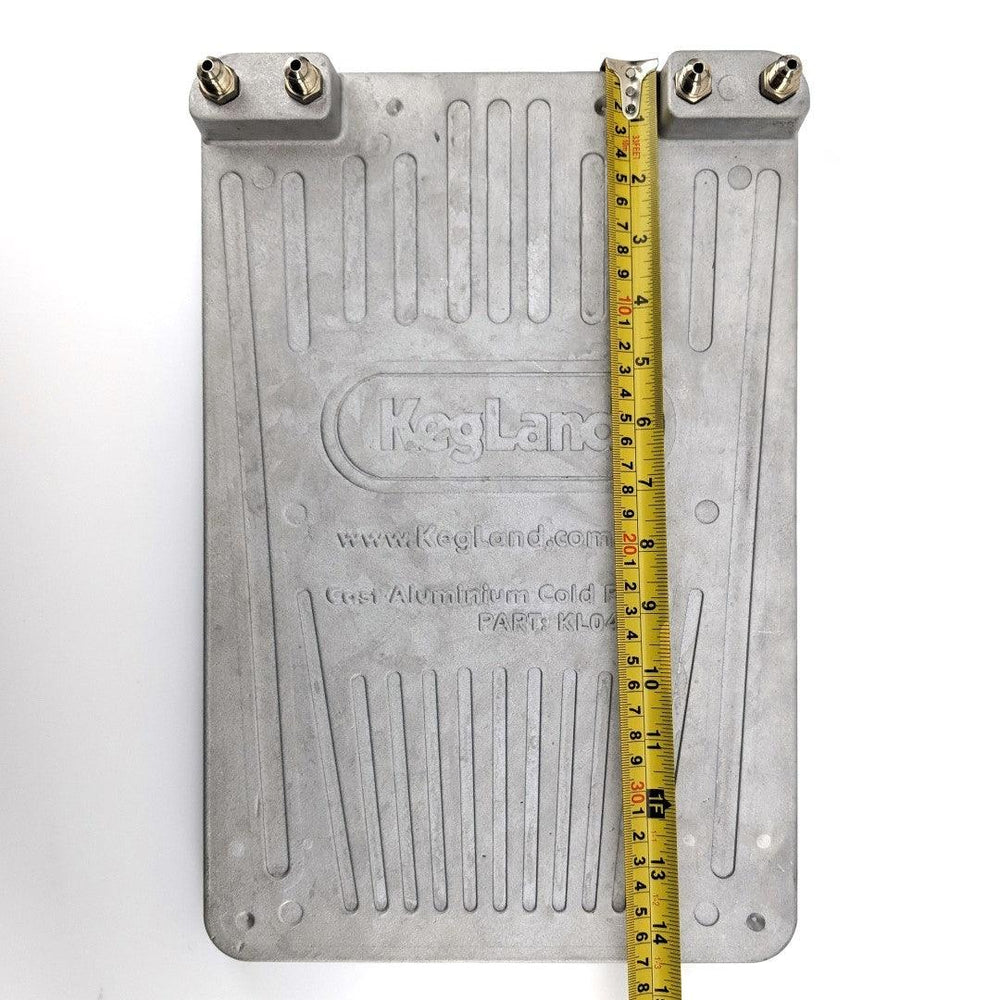

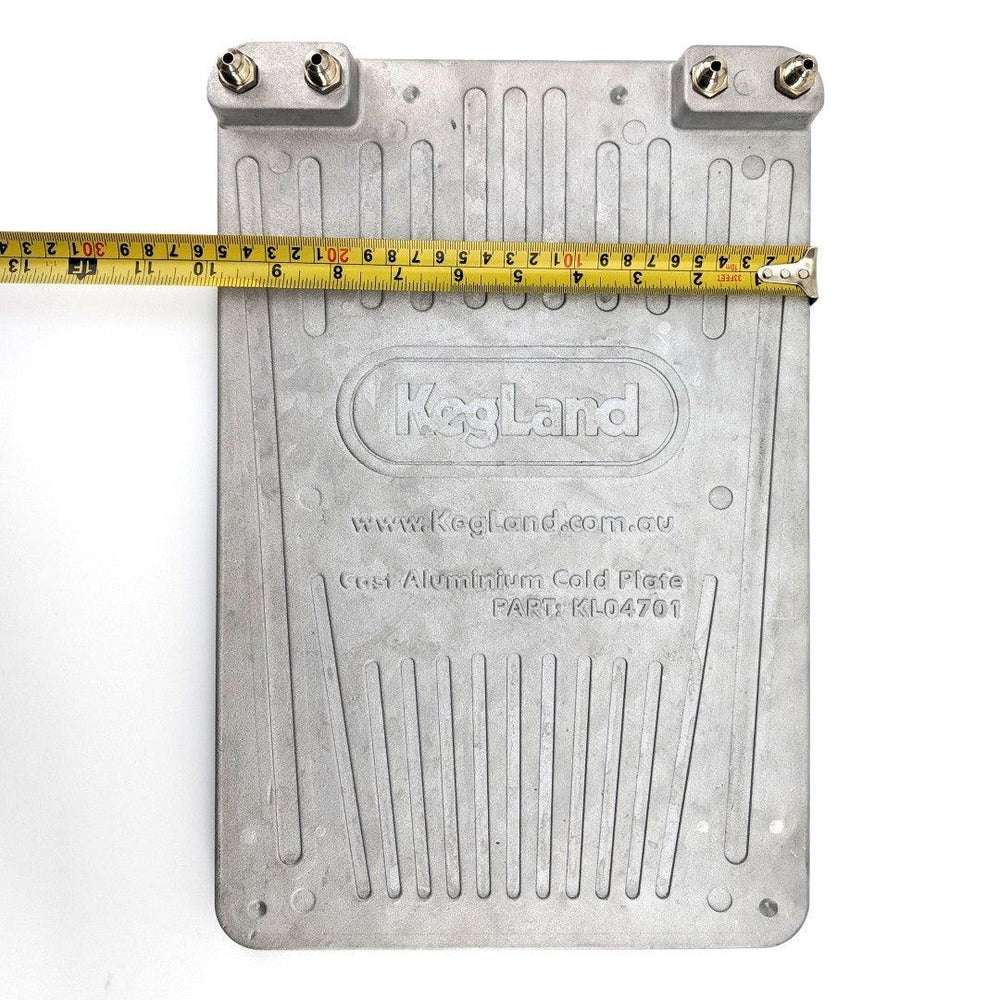

15" L x 10" W x 1" Thick (2.75" tall at inlet/outlet)
-
Pre-drilled mounting holes
-
Recommended serving pressure - 20-30 psi

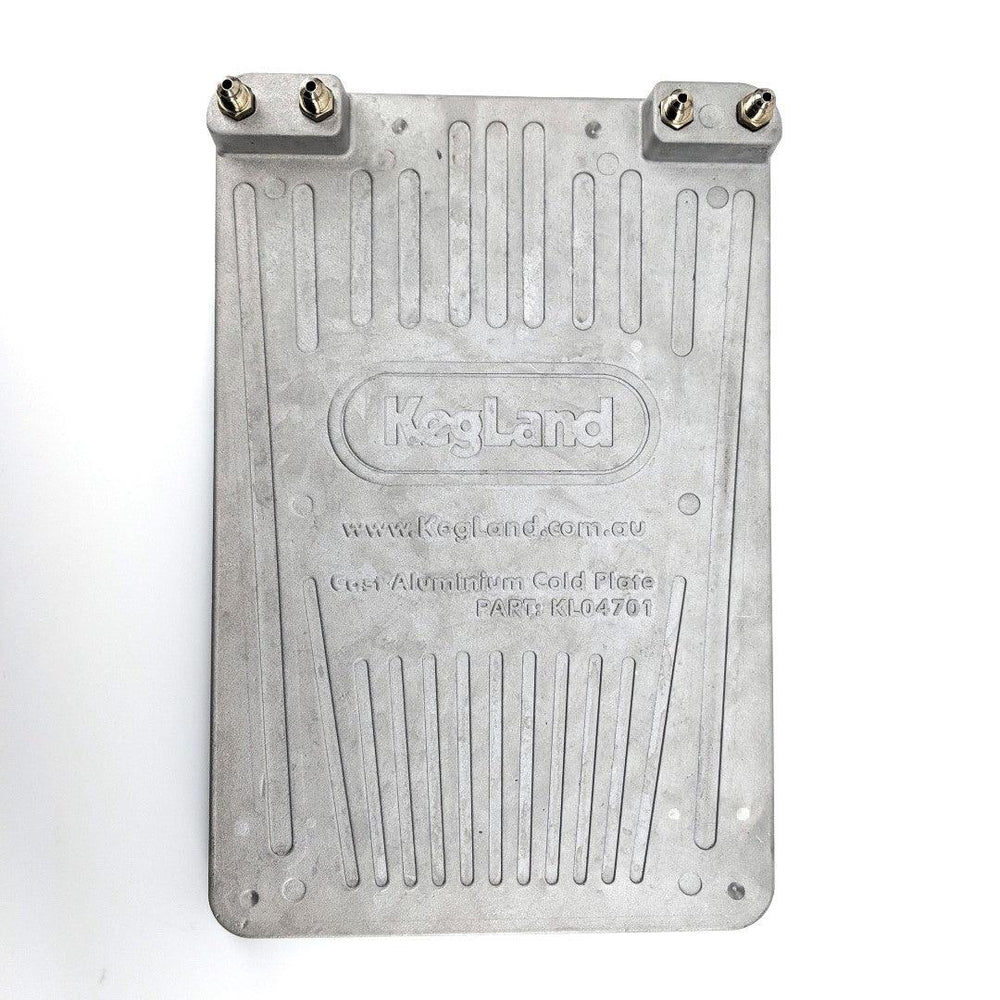

KegLand Part Number: KL04701
