Tanks, Regulators & Manifolds

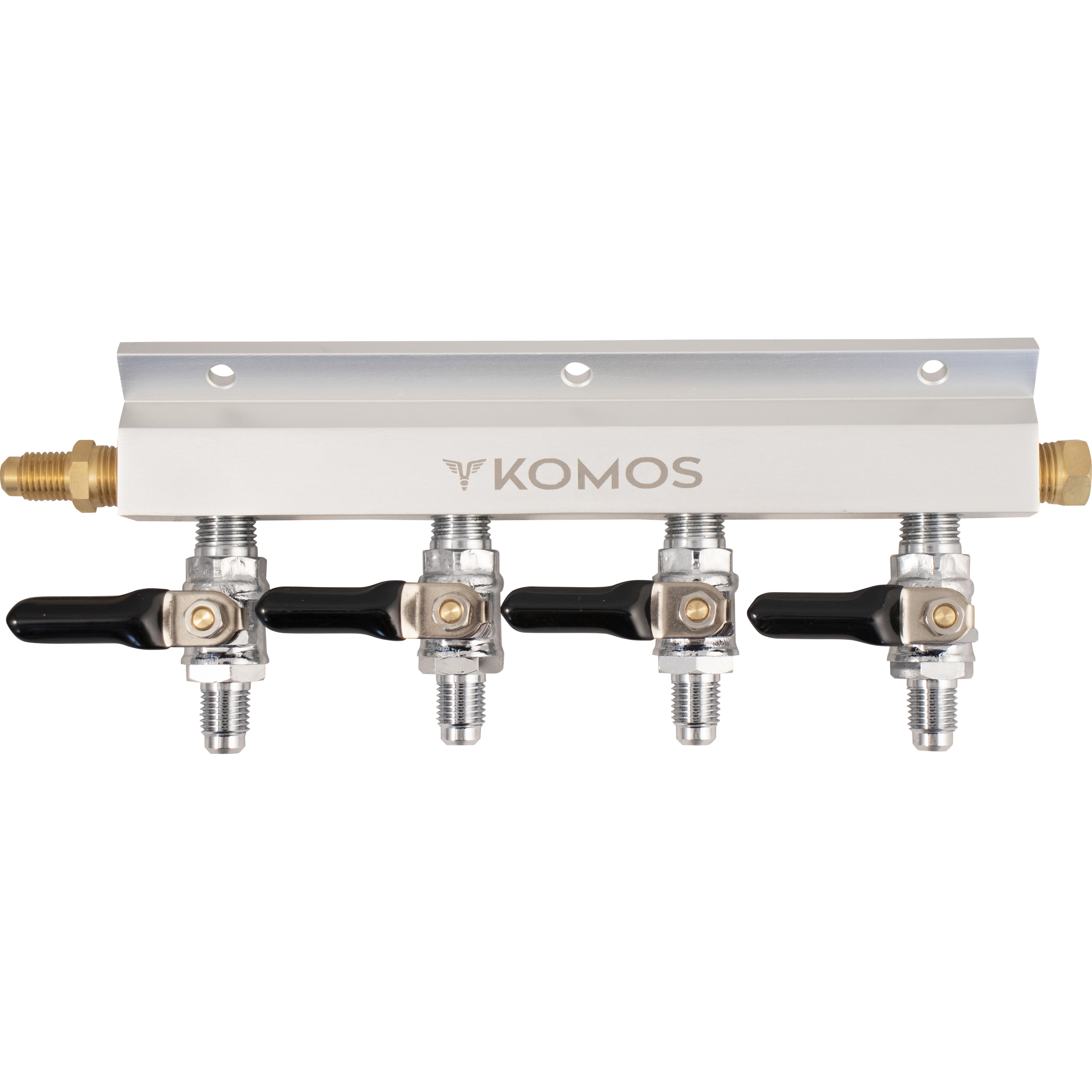

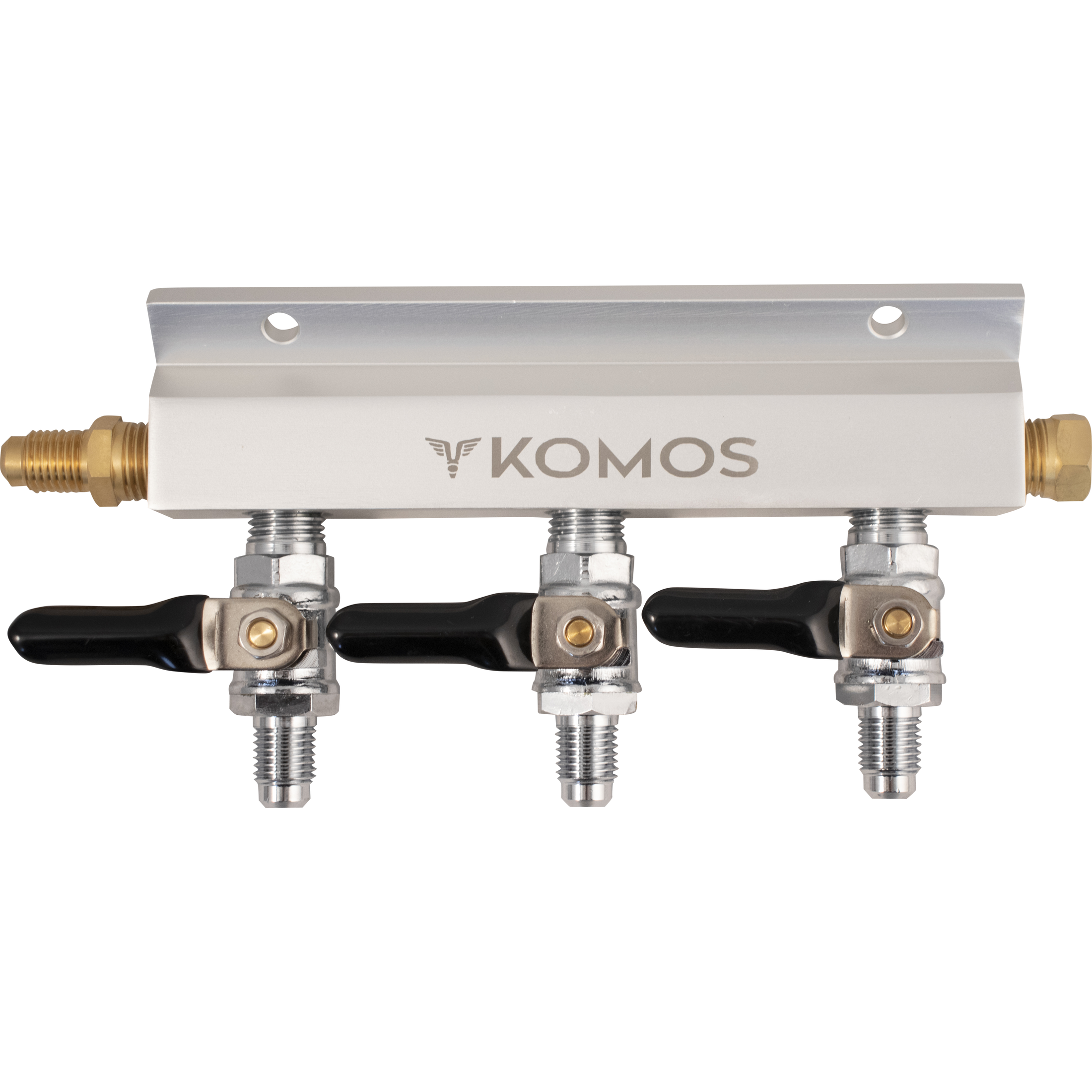

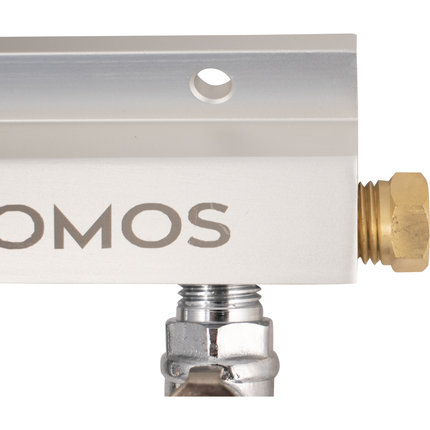

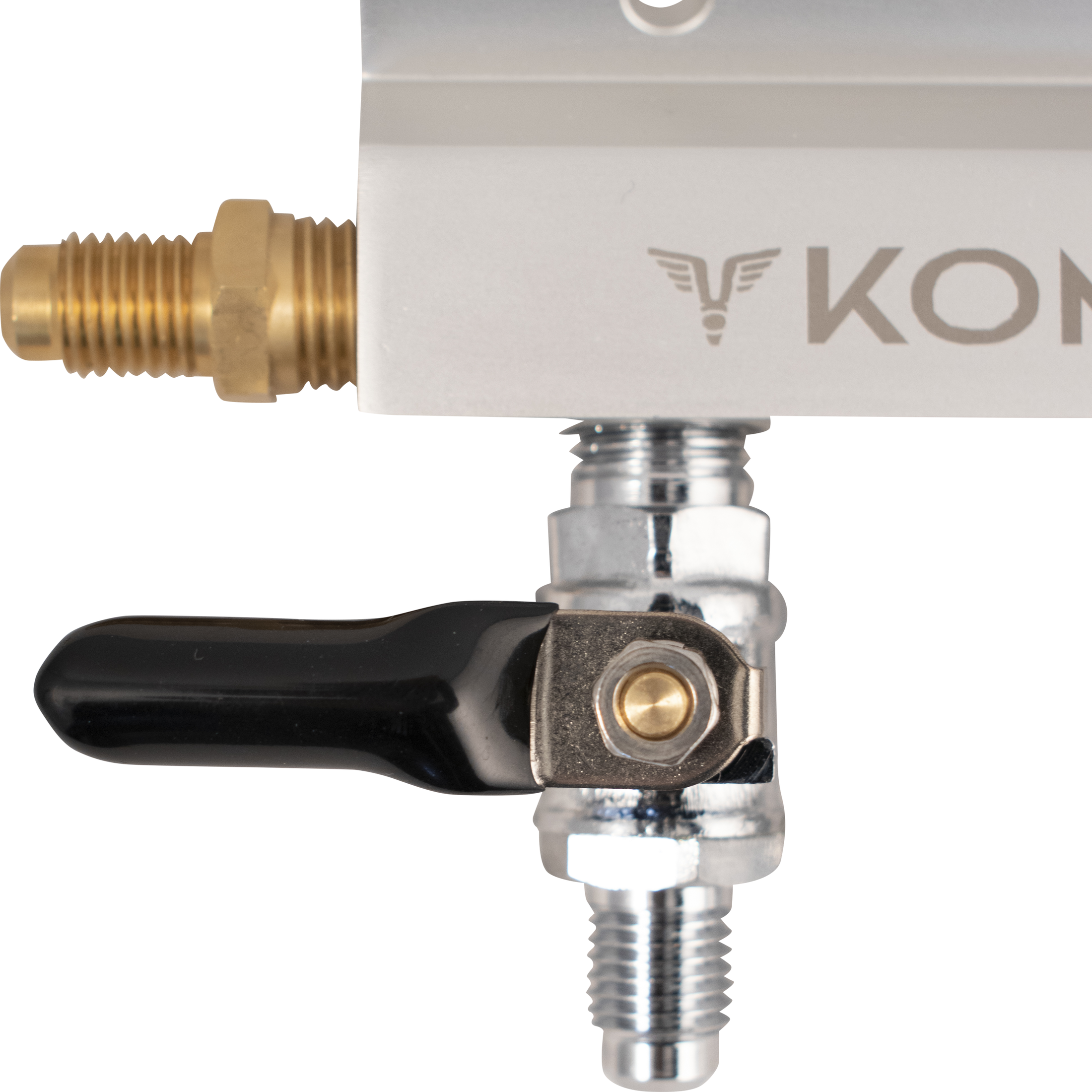

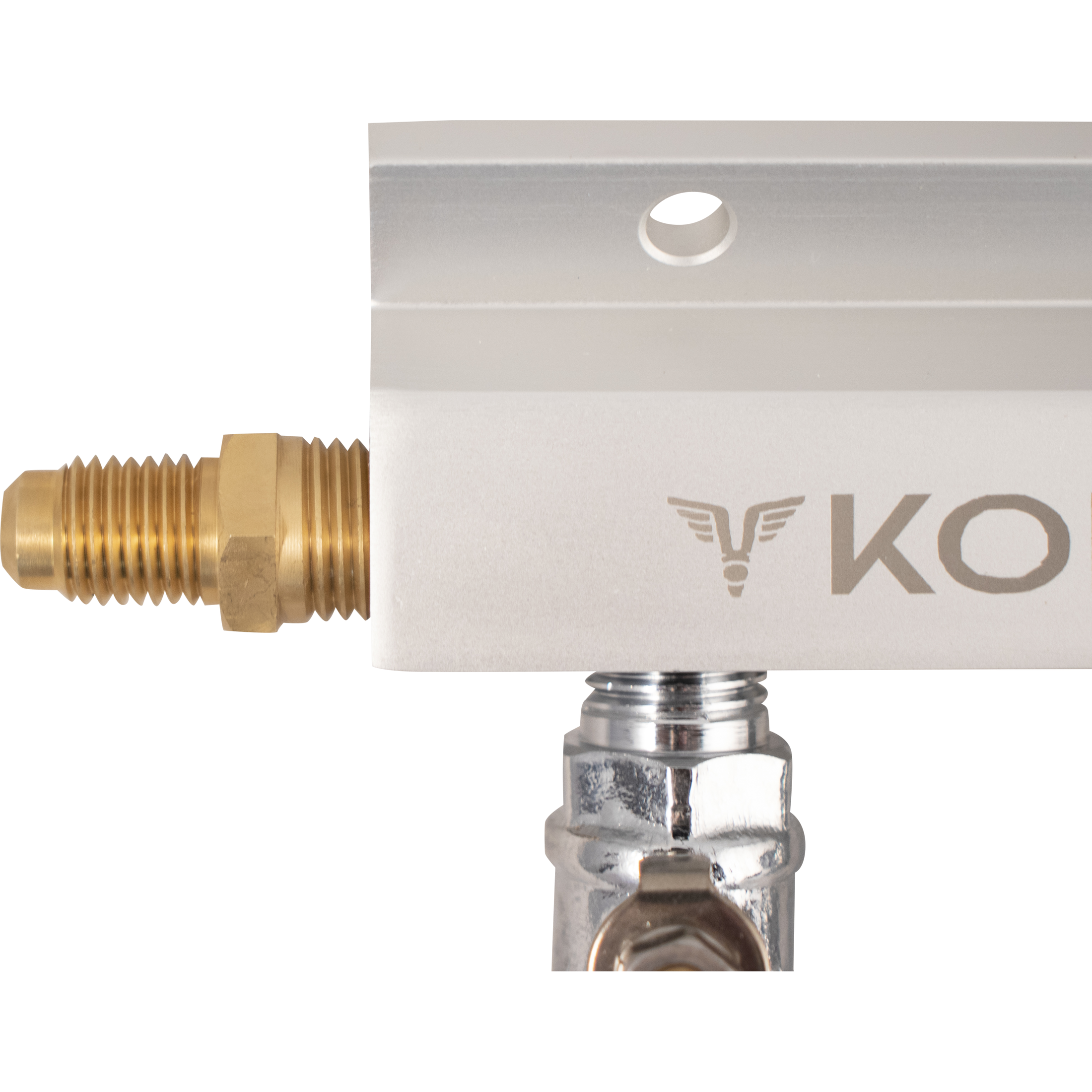

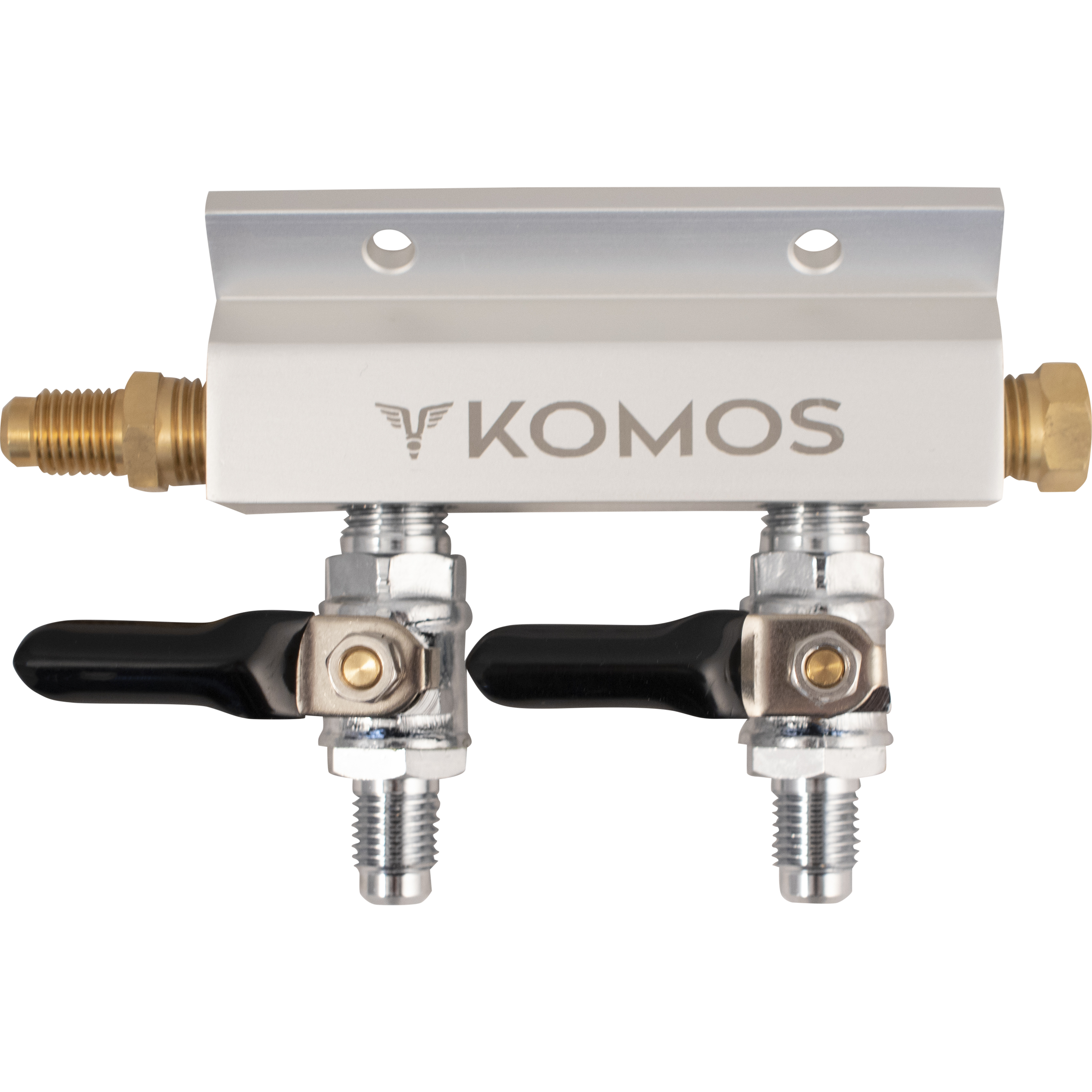

KOMOS® Gas Manifold | Aluminum | 1/4 in. Flare

    Description

    The KOMOS gas manifold features 1/4" flare gas inlet and check valves for much more flexibilty when choosing your draft line. Use 1/4" or 5/16" gas line with the appropriate Flare Fitting Set (KEG607 or KEG640), or use EVABarrier Draft Tubing with the appropriately sized Duotight fitting (DUO106 or DUO120).

    The check valves can also be replaced with a Ball Lock Post Bulkhead, allowing for the use of a gas-in ball lock jumper line as a quick connect option.

    If more than 4 outlets are needed, join multiple manifolds together with this 1/4" Nipple.

    Features:

    • 1/4" Flare connections
    • 1/4" BSP ball valves
    • Rated to 100 psi
    • Wall mount holes
    • Made from aluminum, brass, and stainless steel

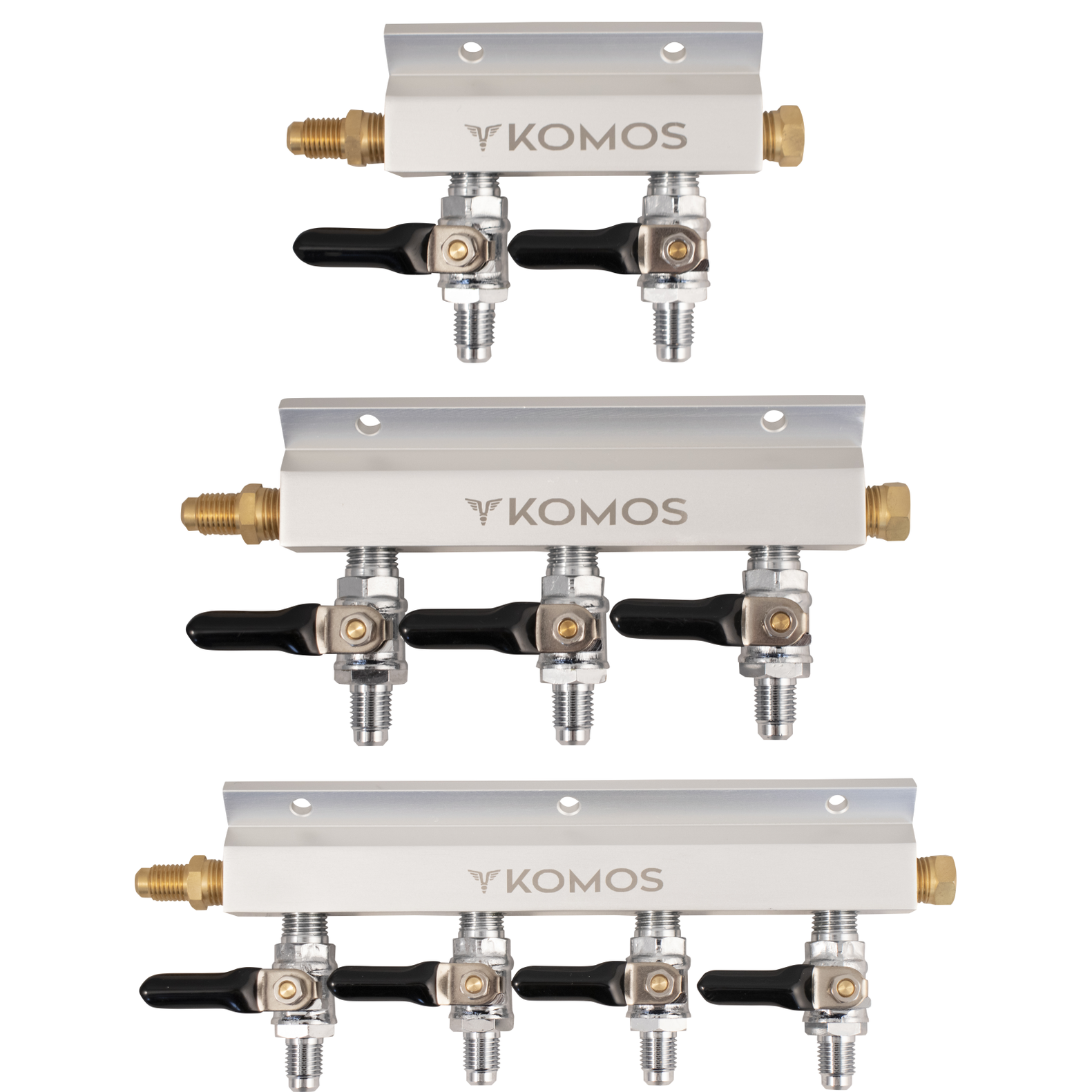

    Size Overall Length
    2-way 5.25"
    3-way 7.25"
    4-way 9.25"



    The above measurements are from the tip for the brass flare inlet to the plug on the opposite end. Each manifold measures approximately 3.5" from the mounting holes to the tip of the valve.



    Read more

    KOMOS® Gas Manifold | Aluminum | 1/4 in. Flare

      Product form

      SKU: D1852

      $26.99

        Free Shipping on orders over $59

        WARNING : This product can expose you to chemicals including Lead and lead compounds, which is/are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

        You're getting the best possible deal on this item, thanks to our Minimum Advertised Price (MAP) policy.

        Description

        The KOMOS gas manifold features 1/4" flare gas inlet and check valves for much more flexibilty when choosing your draft line. Use 1/4" or 5/16" gas line with the appropriate Flare Fitting Set (KEG607 or KEG640), or use EVABarrier Draft Tubing with the appropriately sized Duotight fitting (DUO106 or DUO120).

        The check valves can also be replaced with a Ball Lock Post Bulkhead, allowing for the use of a gas-in ball lock jumper line as a quick connect option.

        If more than 4 outlets are needed, join multiple manifolds together with this 1/4" Nipple.

        Features:

        • 1/4" Flare connections
        • 1/4" BSP ball valves
        • Rated to 100 psi
        • Wall mount holes
        • Made from aluminum, brass, and stainless steel

        Size Overall Length
        2-way 5.25"
        3-way 7.25"
        4-way 9.25"



        The above measurements are from the tip for the brass flare inlet to the plug on the opposite end. Each manifold measures approximately 3.5" from the mounting holes to the tip of the valve.
